R3-32 In-line 5x20 Fuse Holder Inline PA66 Screw Type 5.2x20mm Tube Fuse Holder Black Nylon Body with Wire
Product Description
For 5x20mm or 5.2×20mm FUSES
- Withstanding Voltage:>AC2000V/1min
- lnsulation Resistance:≥100mΩ DV500V
- Electrical:Rated at 10A 250V AC
- Insulating Body: PA66 NYLON
- Konb:Screw, Spring loaded.
- Terminals:brass
- Operation temperature:-10C to +180C
Fuses are optional.
| Item | R3-32 Fuse Holder |
| Mouting Style | Inline |
| Max Rating | 10A 250V |
| Certifications | RoHS |
| Body Color | black |
| House material | PA66 / nylon |
| Terminal material | brass |
| Body | 47mm |
| Body diameter | 10.5mm |
| MOQ | 1000PCS |
Fearures of R3-32 the 5x20 In-line Mount Fuse Holder
1.Easy installation: reasonable deisgn with small volume.
2.Safety: Safety insulation material body and UL standard PVC cable ensure safe operation.
3.High reliability: finely made contacts and screw structure ensures the fuses are in full contact with the terminals.
Wide range and customized services
| Fuses Amperes | 0.2A 0.315A 0.5A 1A 2A 3.15A 4A 5A 6.3A 8A 10A (UL lISTED) |
| Wire Gauge | 20AWG 18AWG 16AWG 14AWG (UL1015 PVC) |
| Custom Cable | length & color (upon request) |

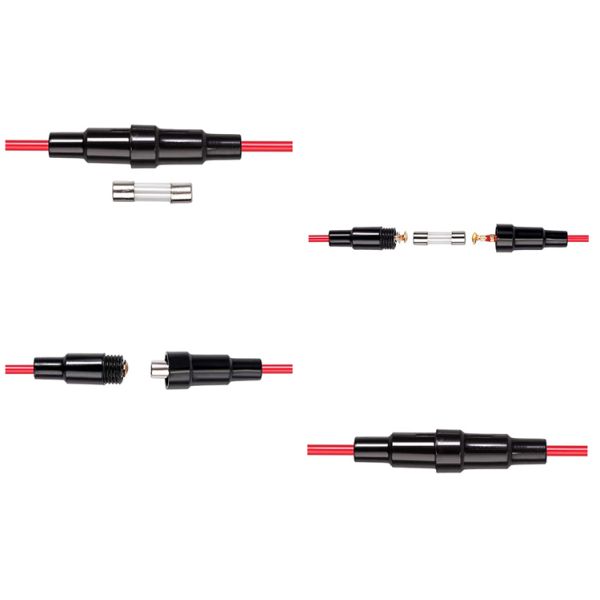

| Structure | female and male body, terminal contacts x2, spring, wire, fuse |
| Electrical rating | 250V 10A max |
| Body Material | PA66 NYLON |
| Contact Material | Brass |
| Wire Material | PVC and tinned copper |

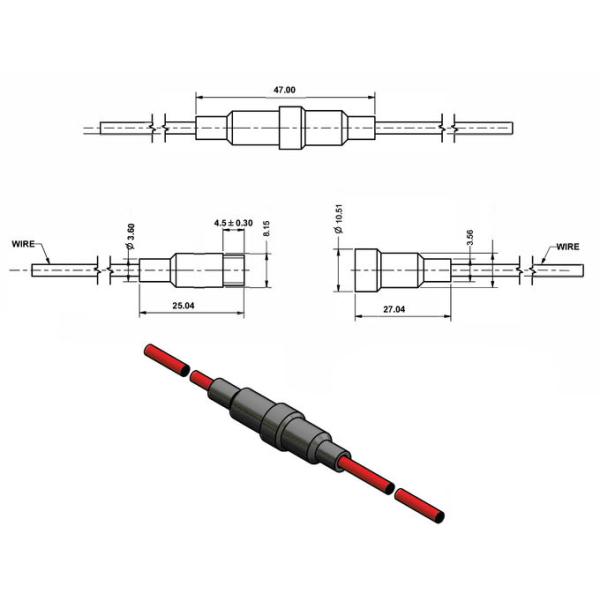

Drawing of the R3-32 5x20 fuse holder inline mount
Please allow 1-3mm tolerance due to manual measurement.
Applications
Electronic boards, Car, Boat, Truck, SUV, Motorcycle, etc.
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, samples are for free charge but you need to pay for the shipping cost.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
R3-32 In-line 5x20 Fuse Holder Screw Type 5.2x20mm Tube Fuse Holder
| Item | R3-32 Fuse Holder |
| Mouting Style | Inline |
| Max Rating | 10A 250V |
| Certifications | RoHS |
| Body Color | black |
| House material | PA66 / nylon |
| Terminal material | brass |
| Body | 47mm |
| Body diameter | 10.5mm |
| MOQ | 1000PCS |
